Overhead Lights

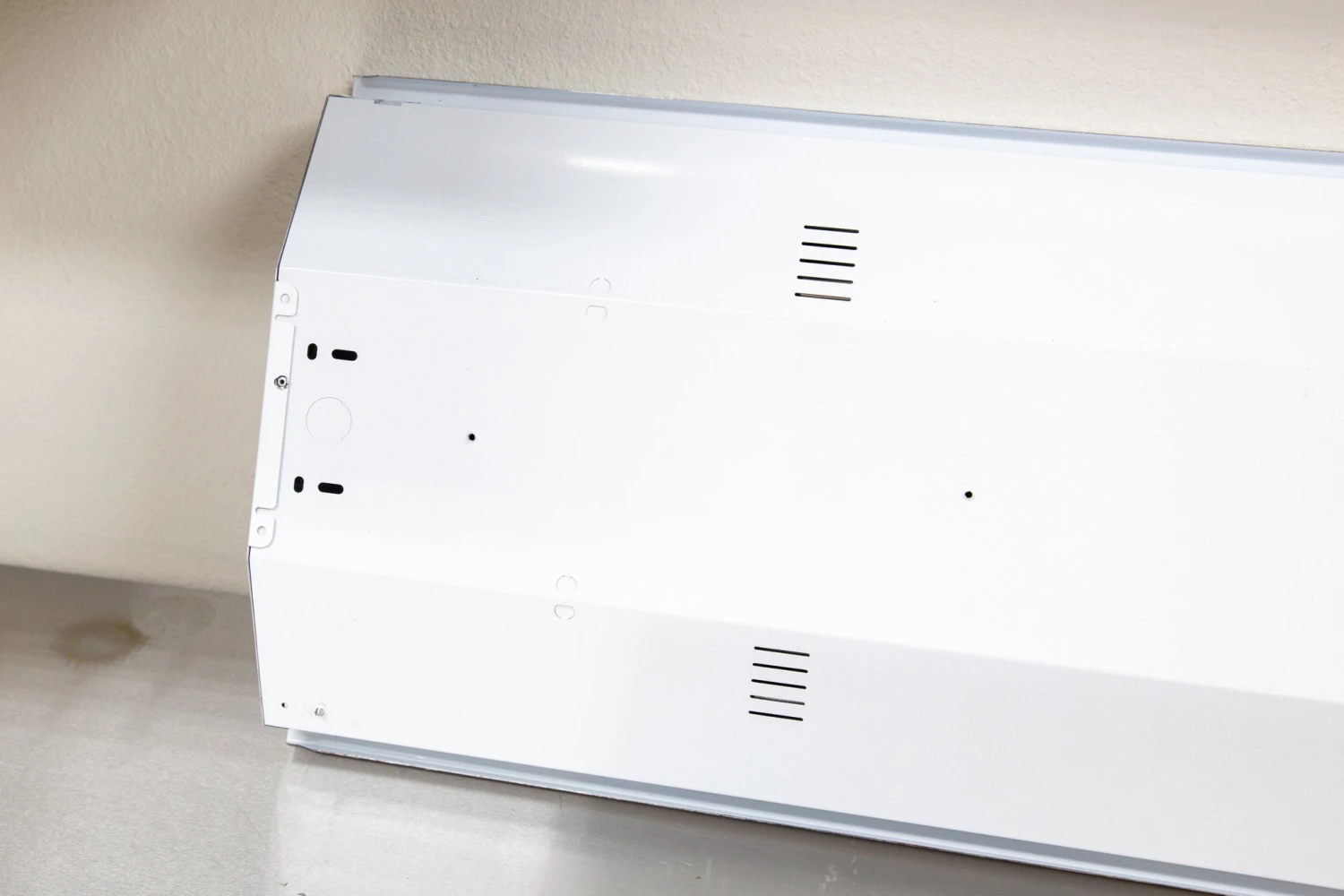

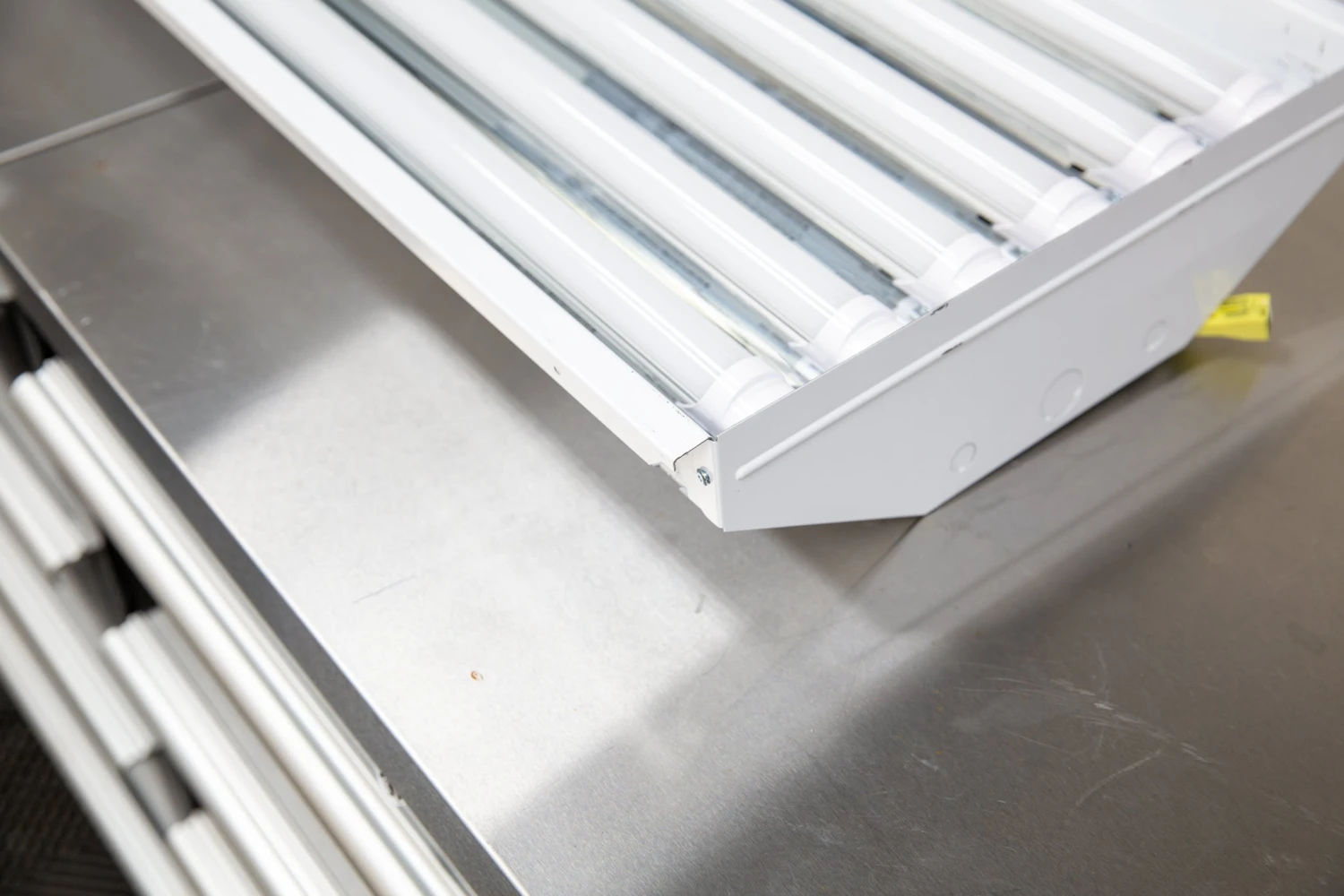

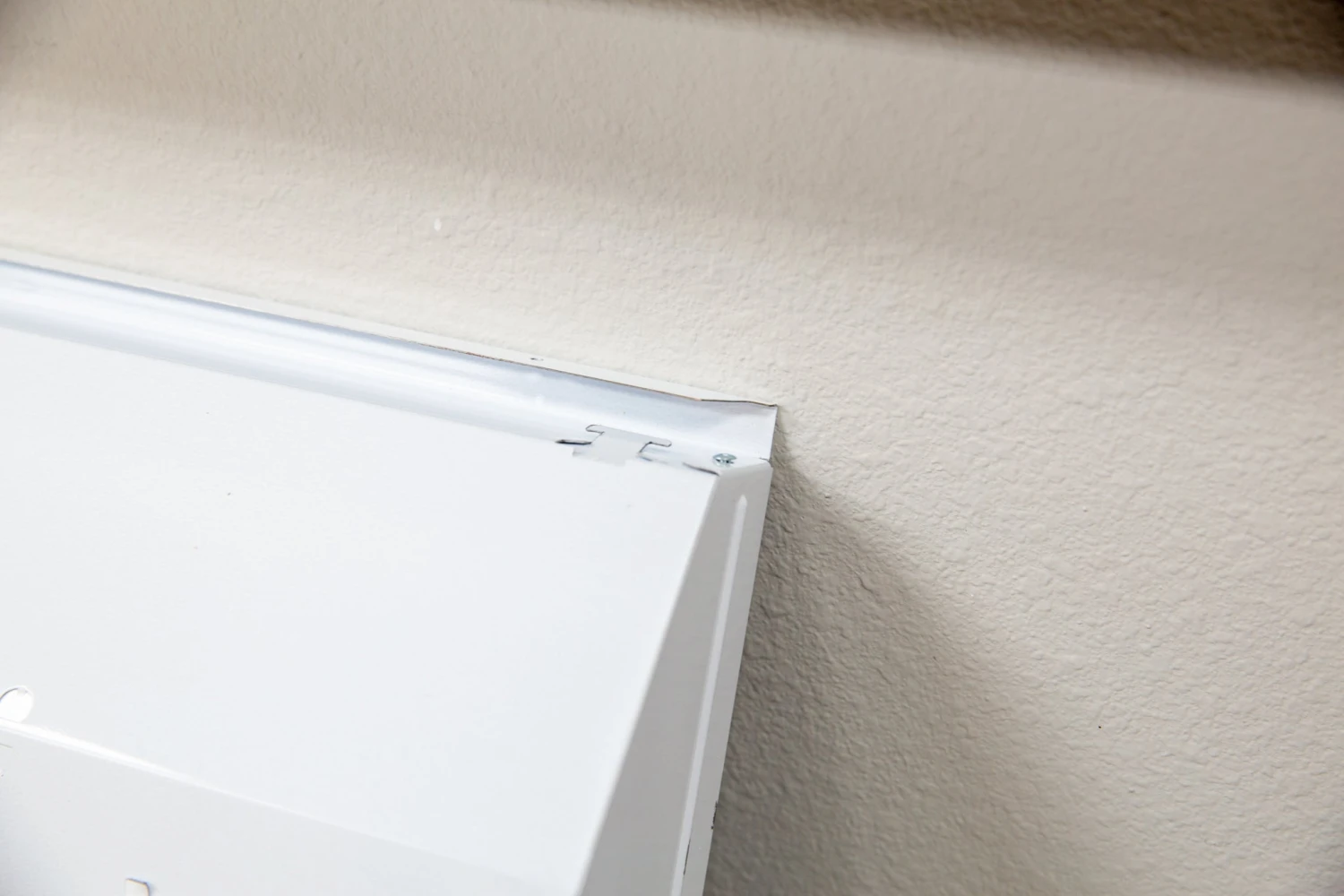

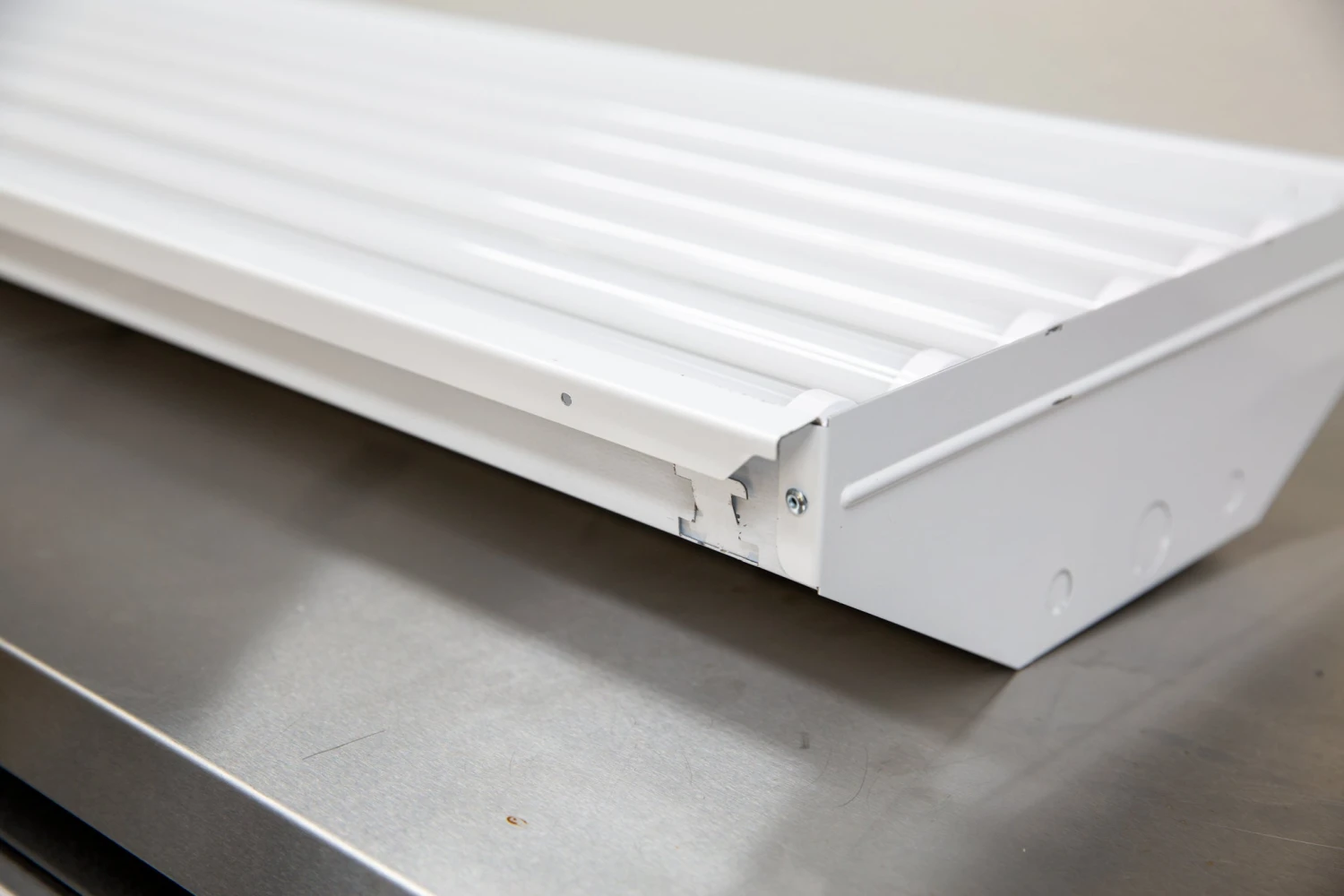

If you have seen in some of my past videos the lights I’ve put in my 2 garages or in the LZ Garage project, these are much better. I hadn’t found these yet. The good news is these include bulbs and are less expensive as a total package due to lack of ballasts. They are still the typical 20 Gauge baked White Enamel Steel, but they have some reinforcement on the sides that make them a bit more sturdy.

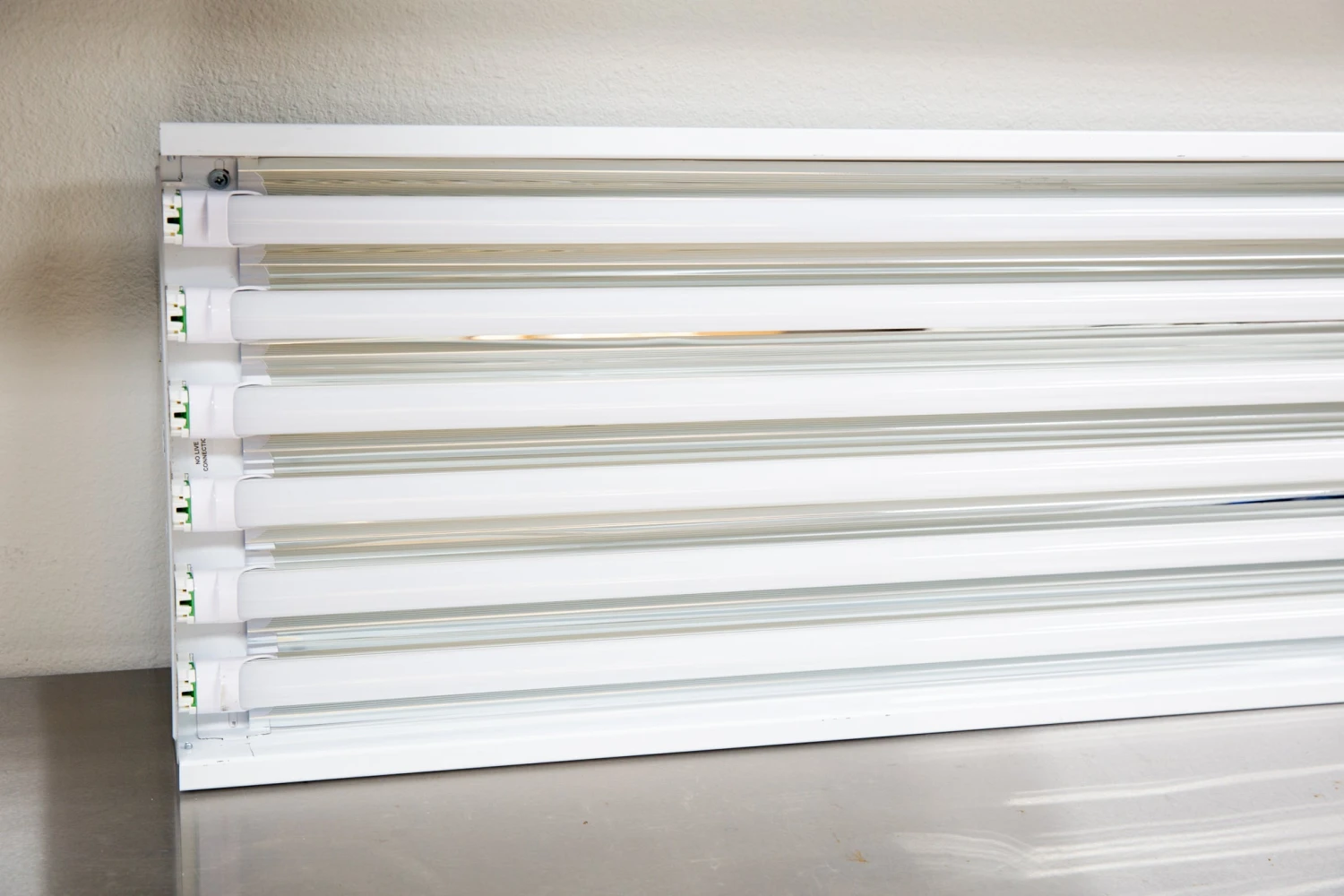

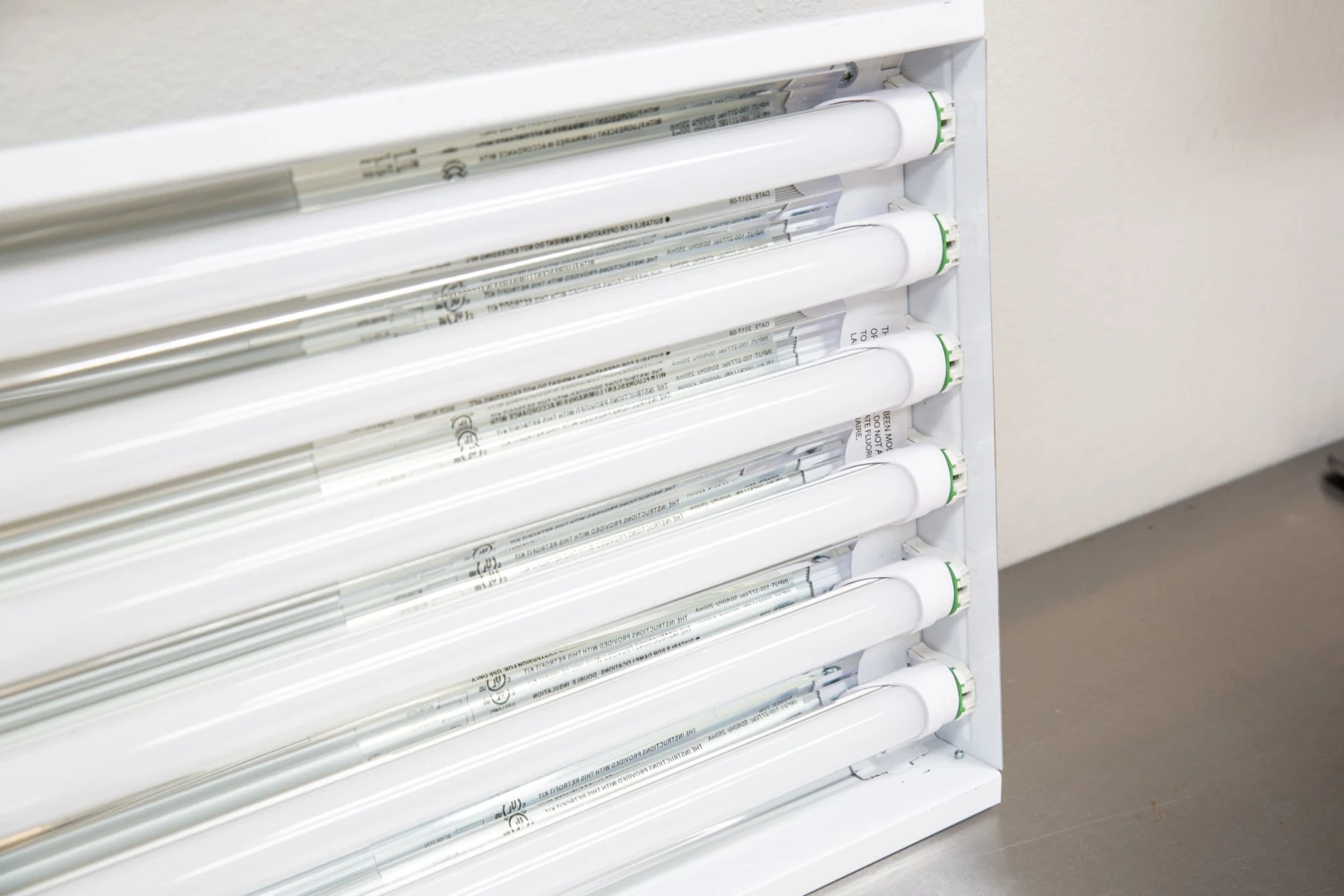

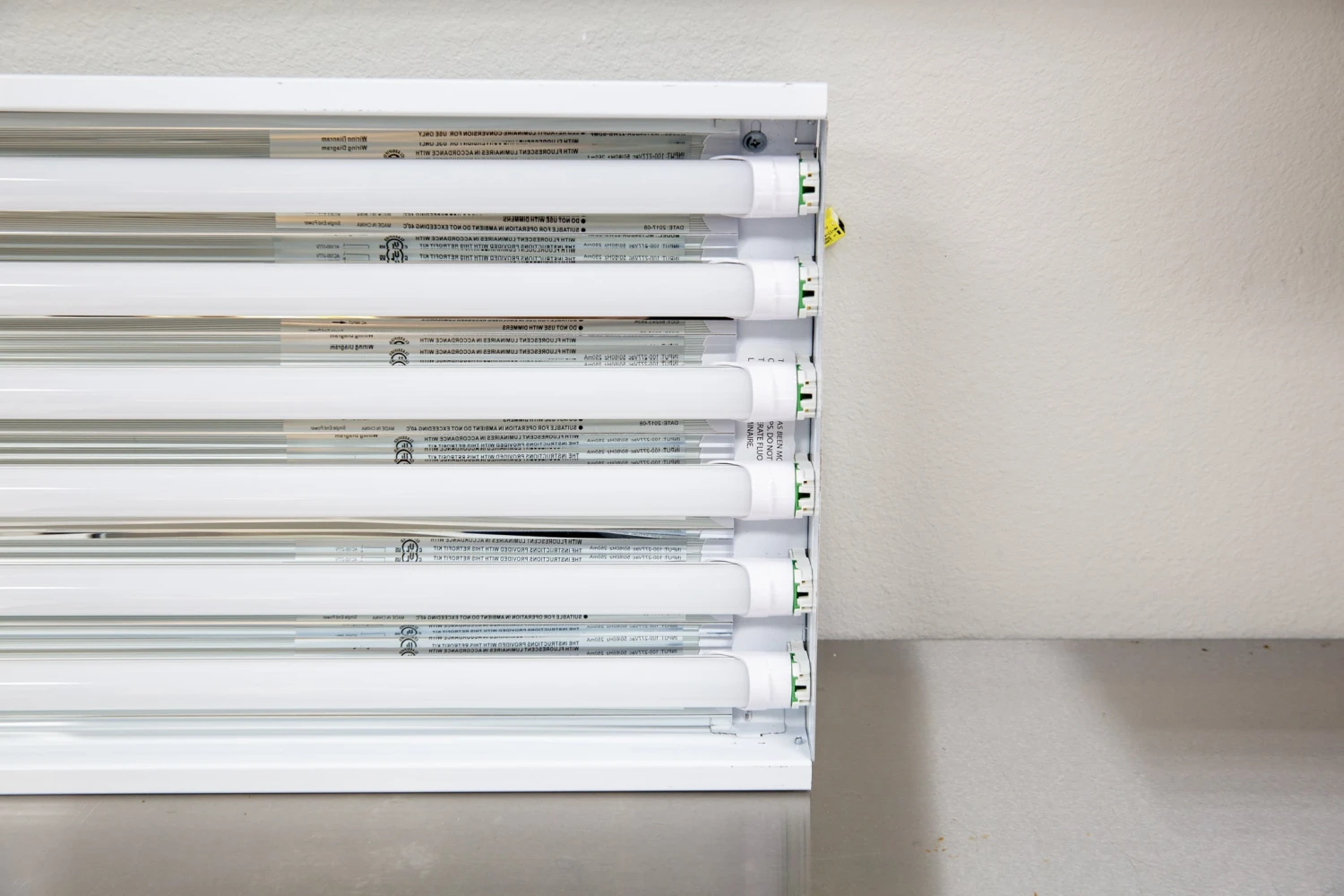

They are single sided powered. These include 5000K frosted LEDs. They are a bit more palatable at 5000K for most people. I would suggest trying 5000K then getting the more expensive 6000K higher CRI bulbs later. As of now, I don’t have access to those.

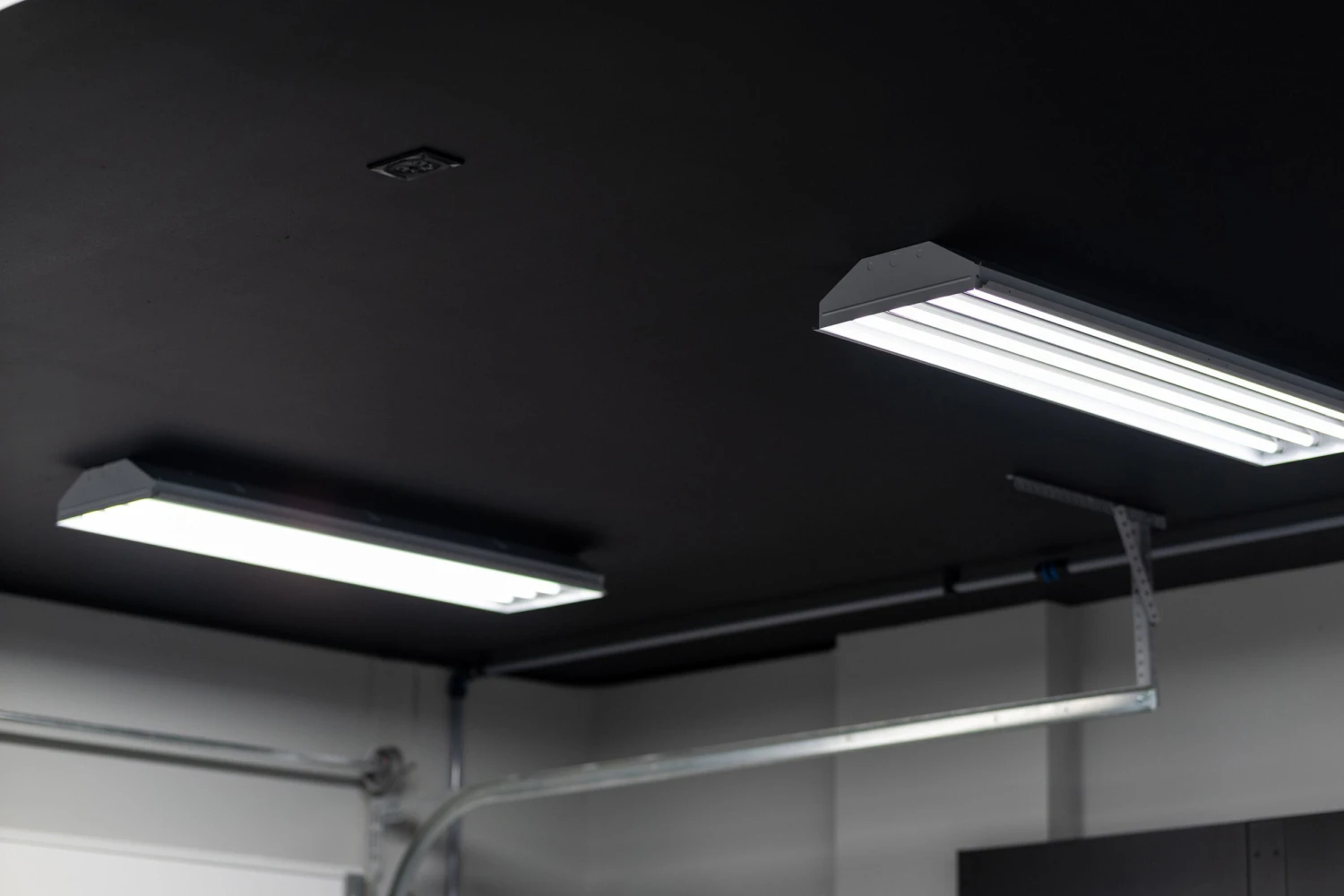

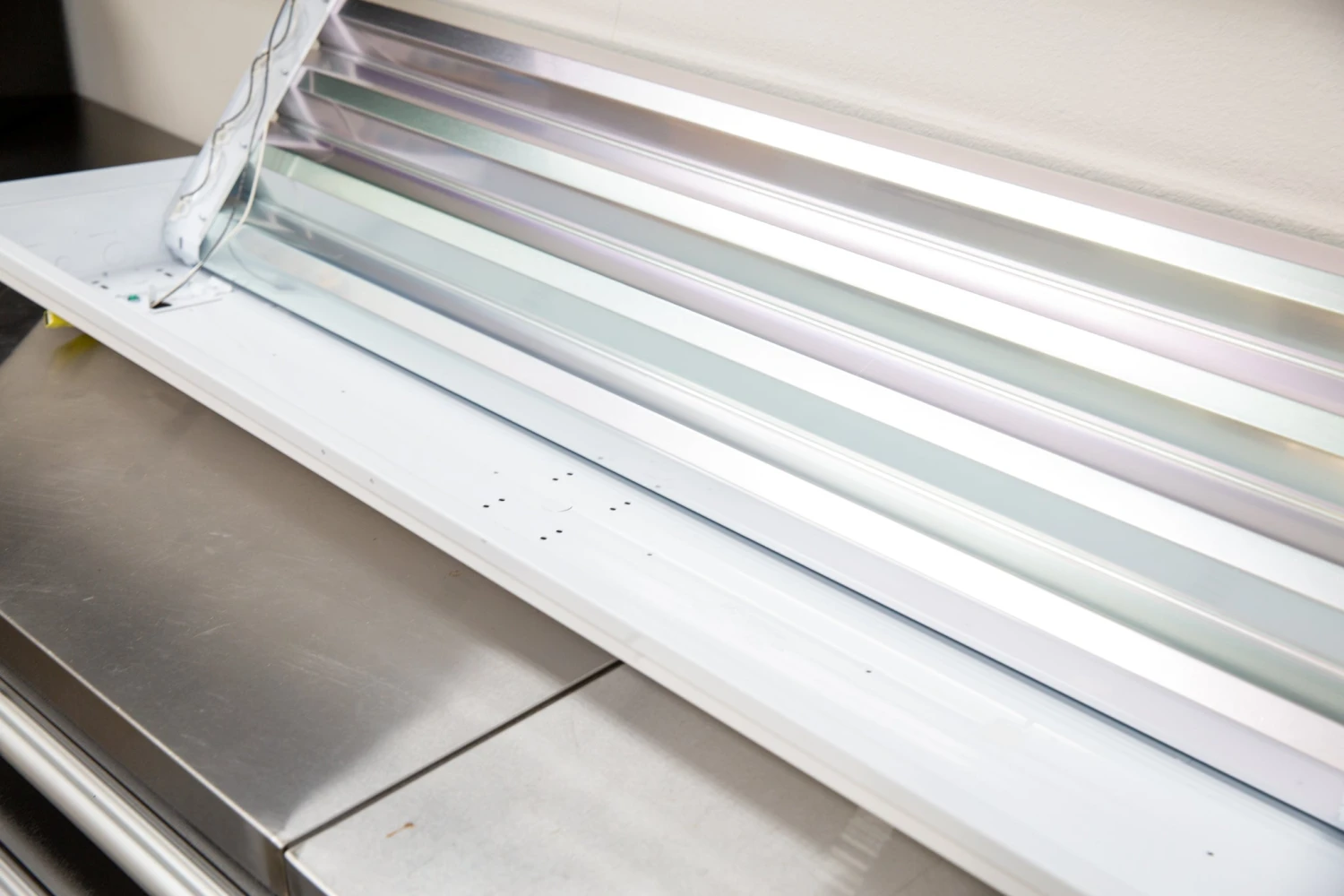

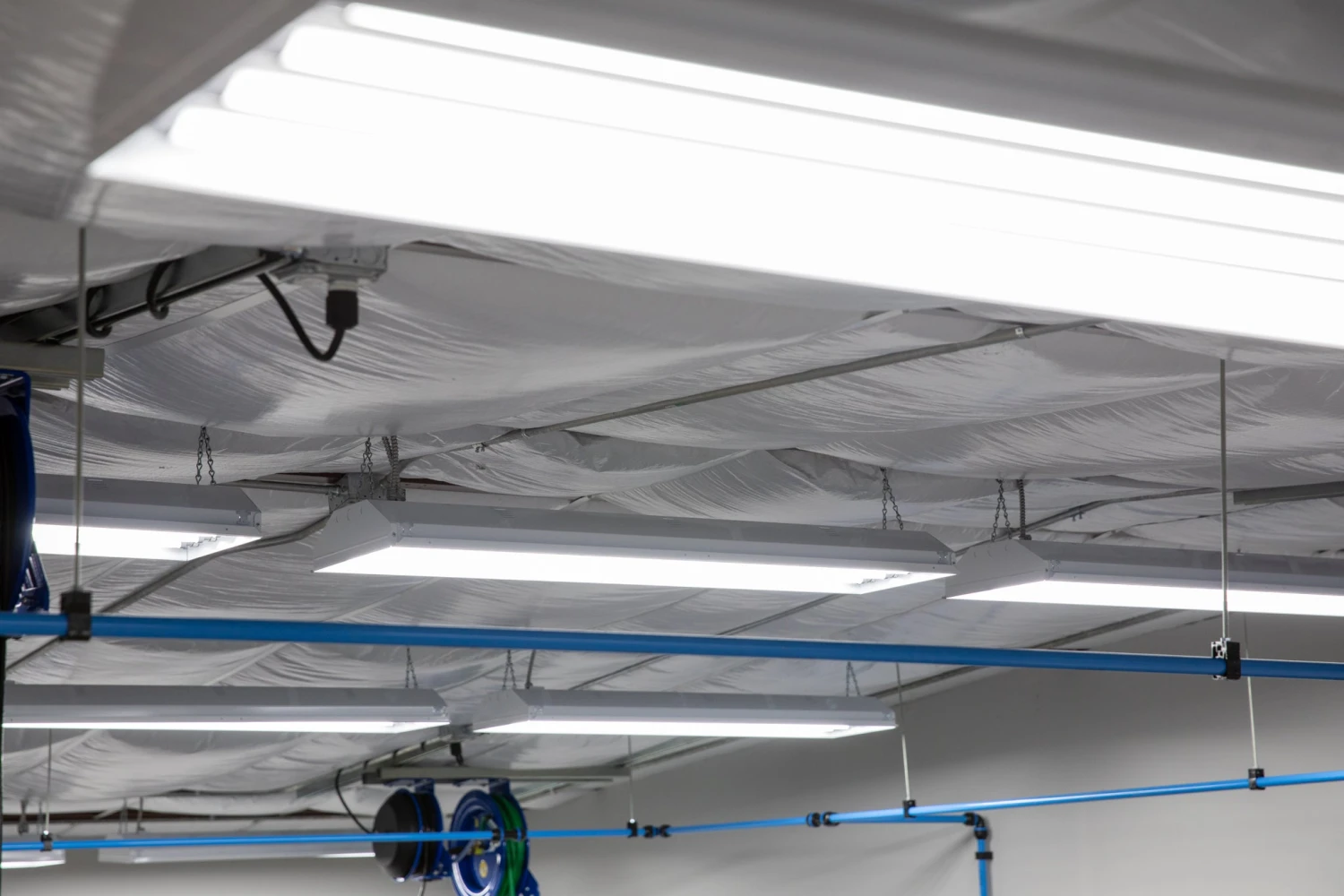

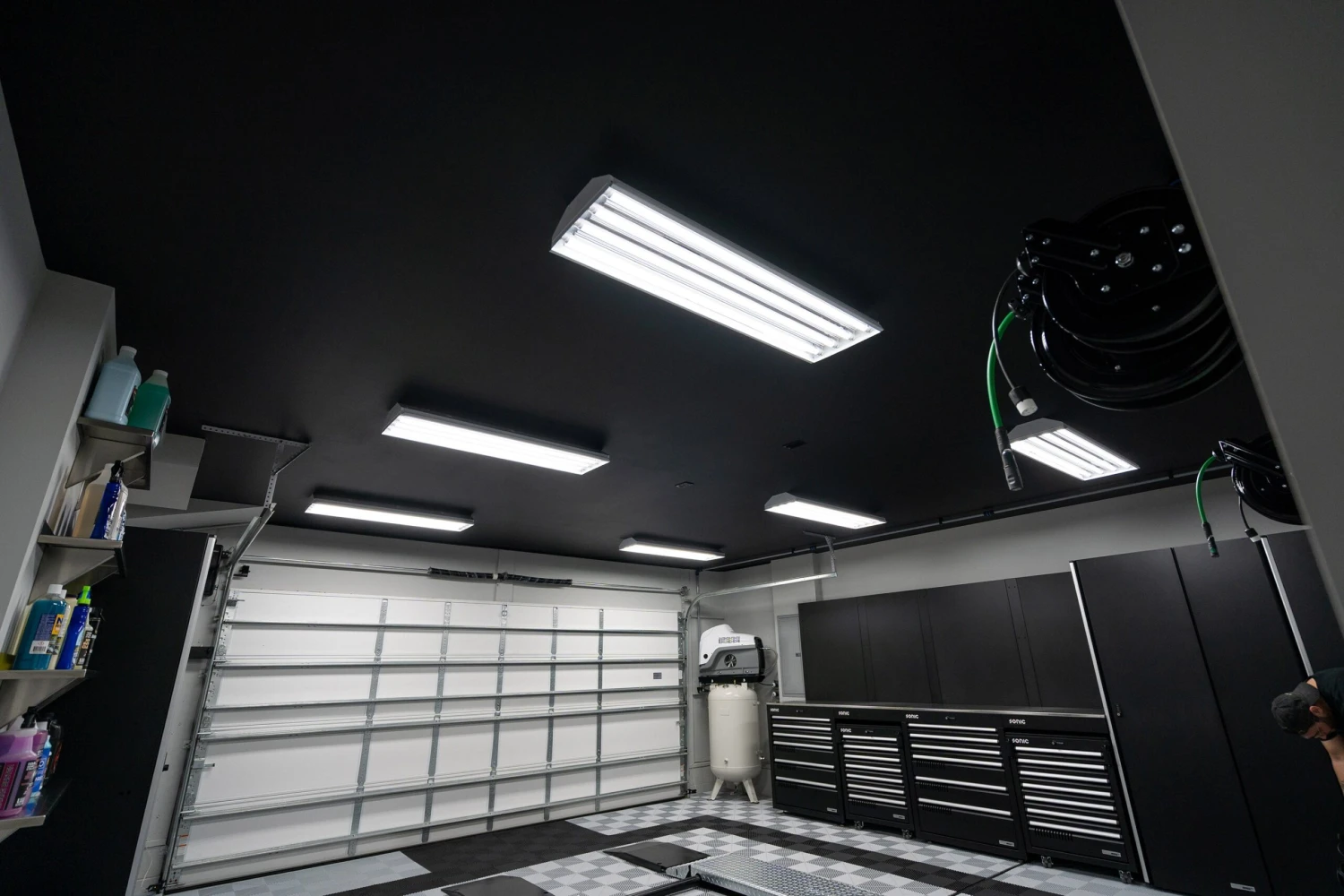

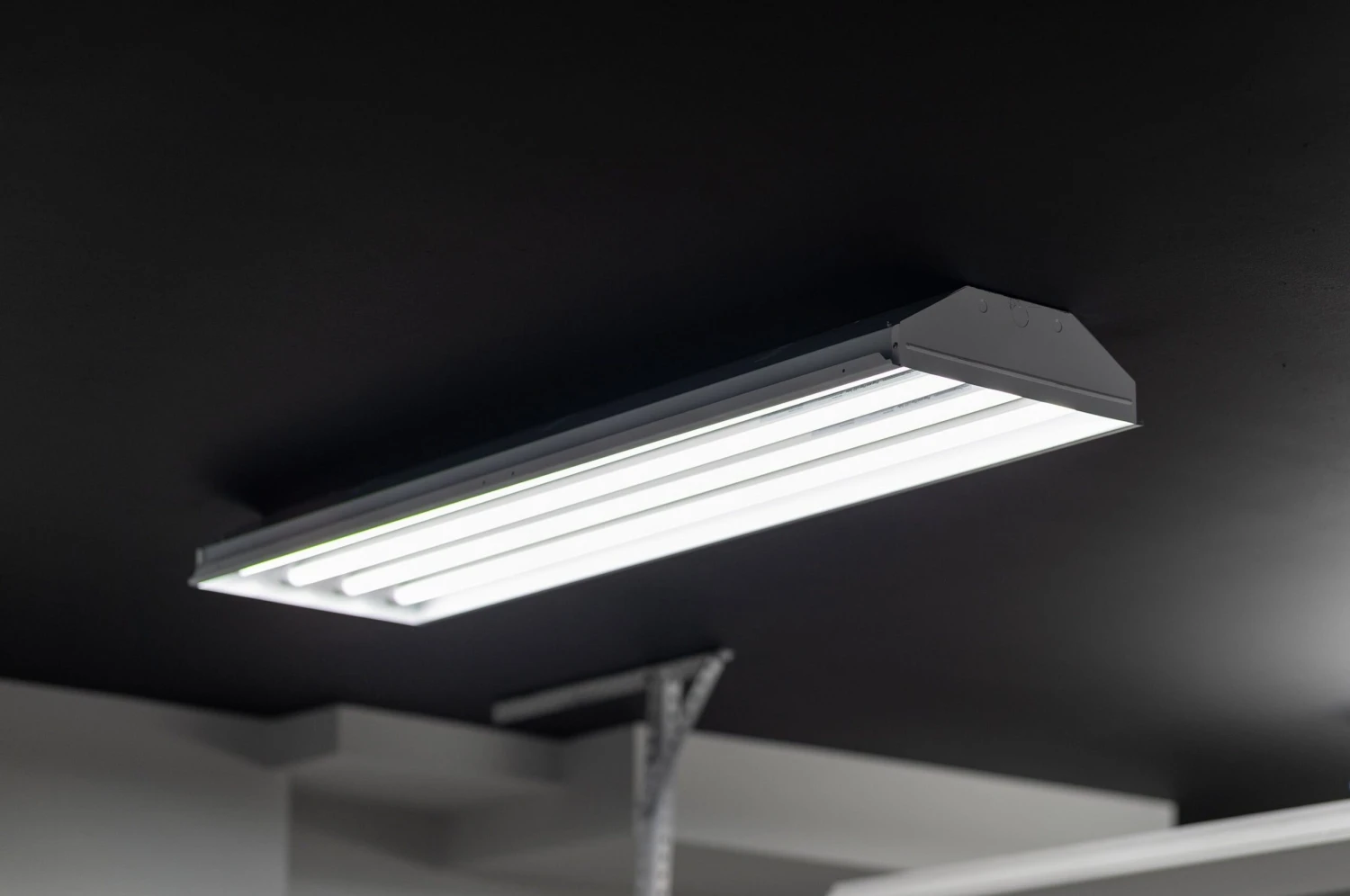

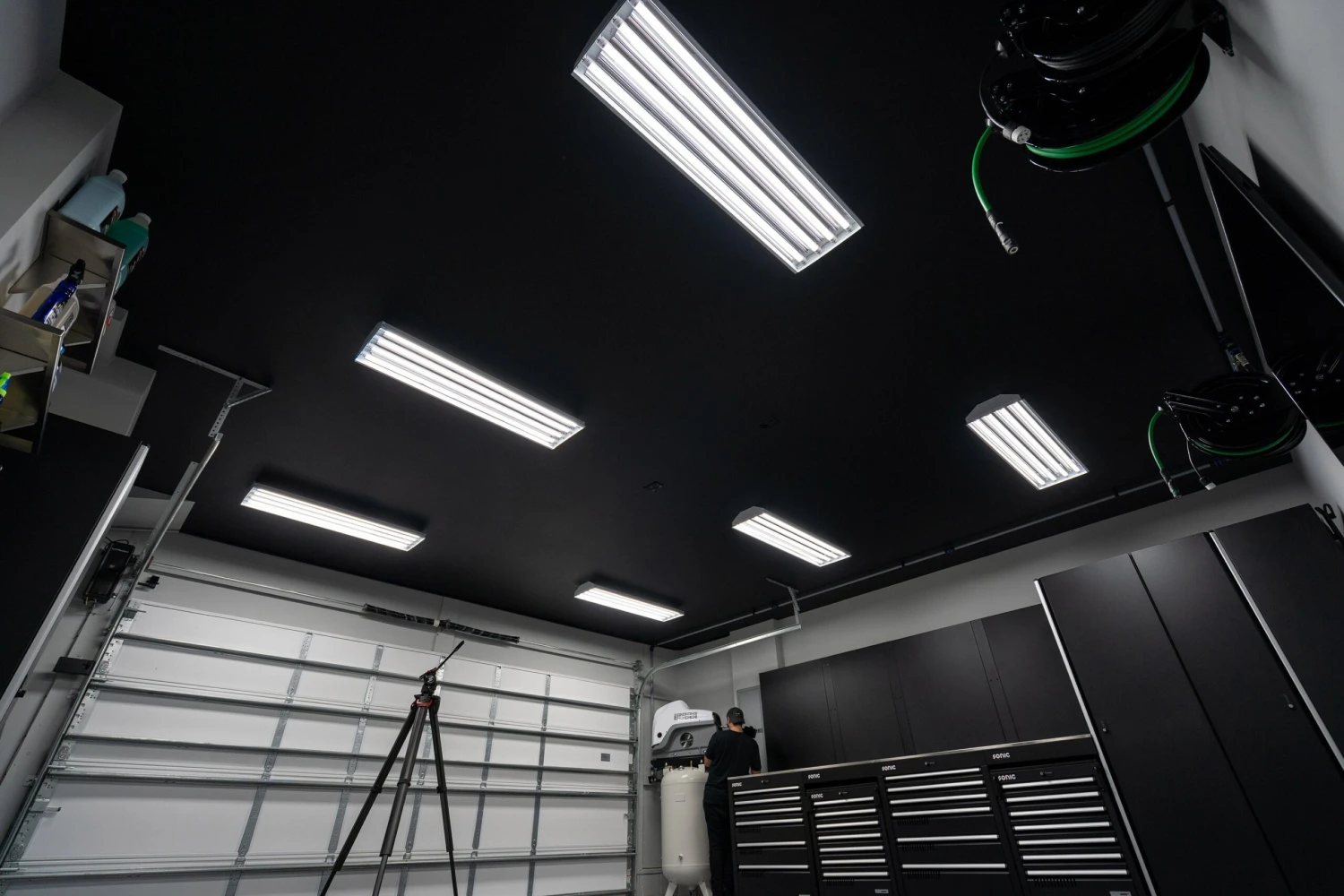

These are technically high bay fixtures due to the reflectors, but we can use them in a normal height garage if placed properly. That’s why frosted LED tubes are necessary.

Specifications

48″ L x 13 7/8″ W x 3 15/16″ D Each
110V Rated at 50,000+ Hours 80+ CRI

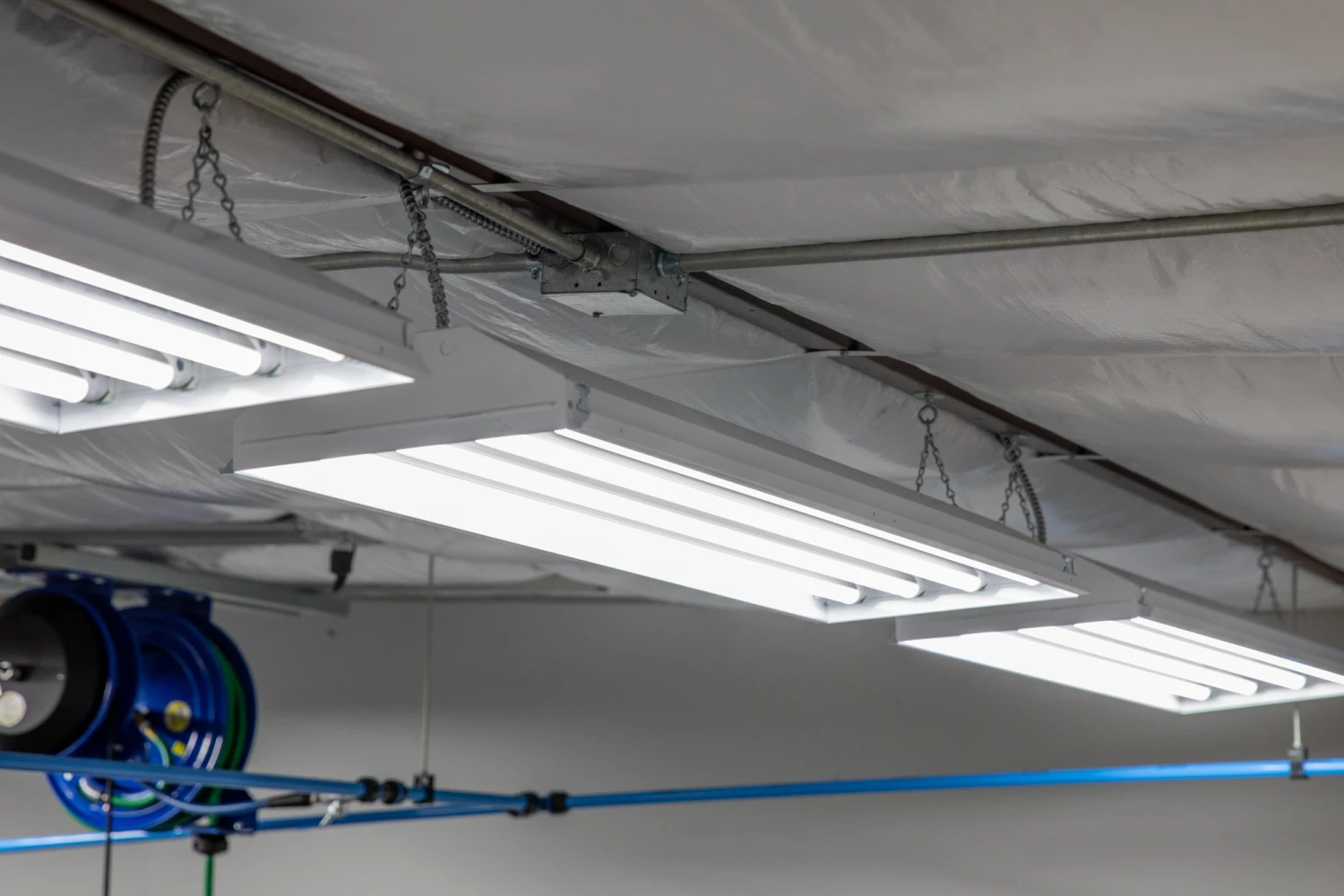

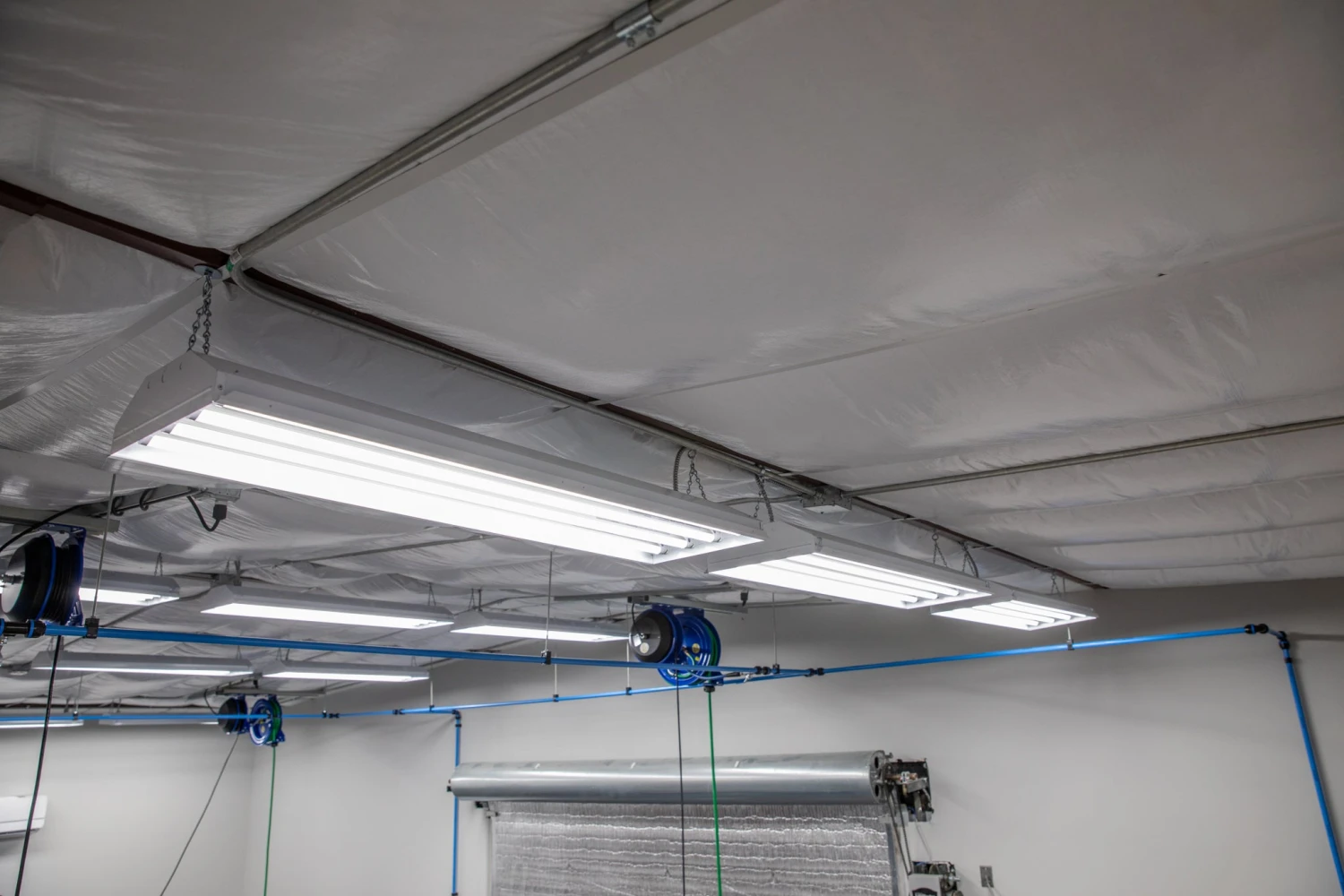

Surface Mountable or Chain Hung Capable
Dimmable -Please see attached link below for more information.

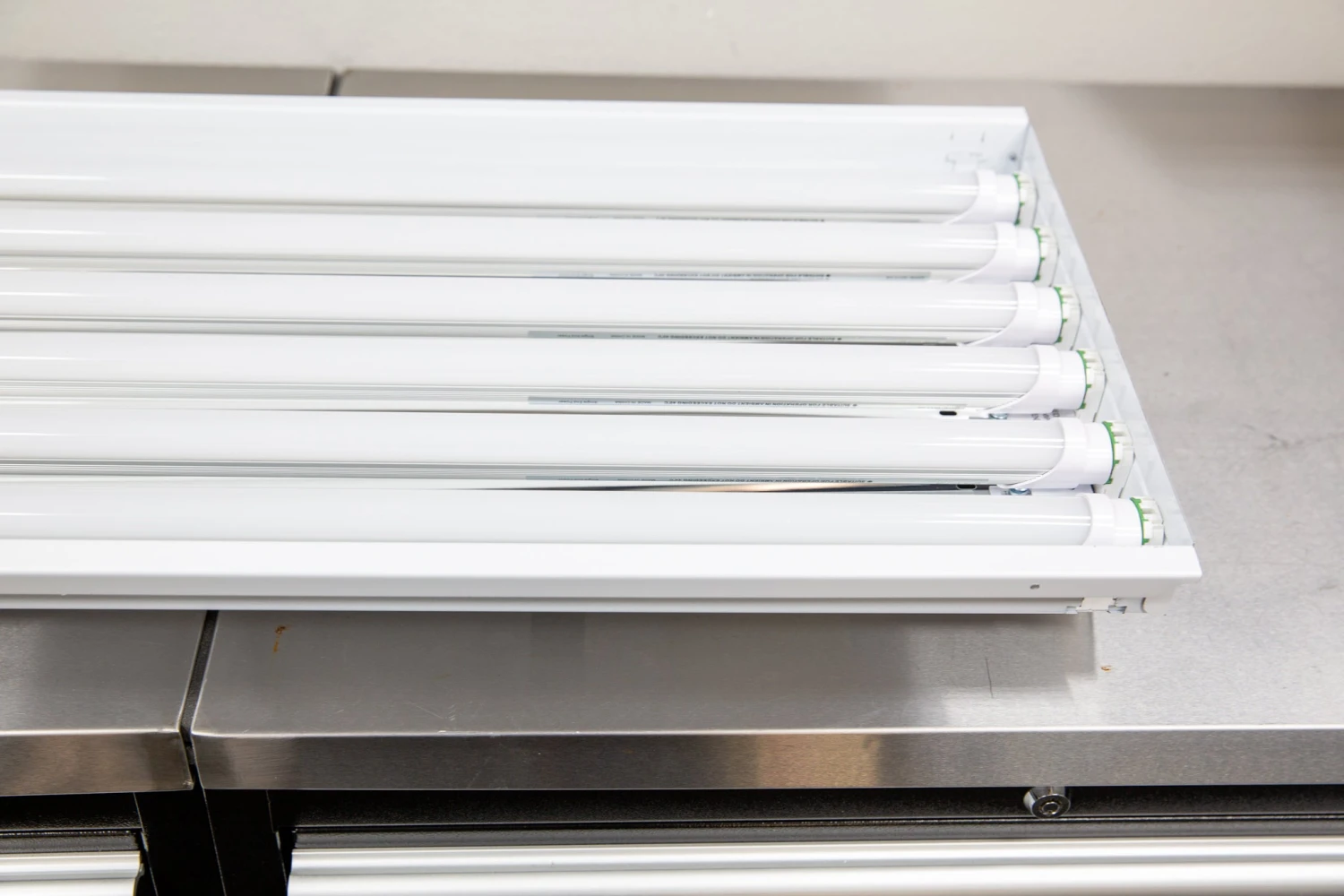

4 Bulb Fixture

– Rated to draw 0.74A per fixture
– 11,400 LED Lumen Output (21,660 Equivalent)

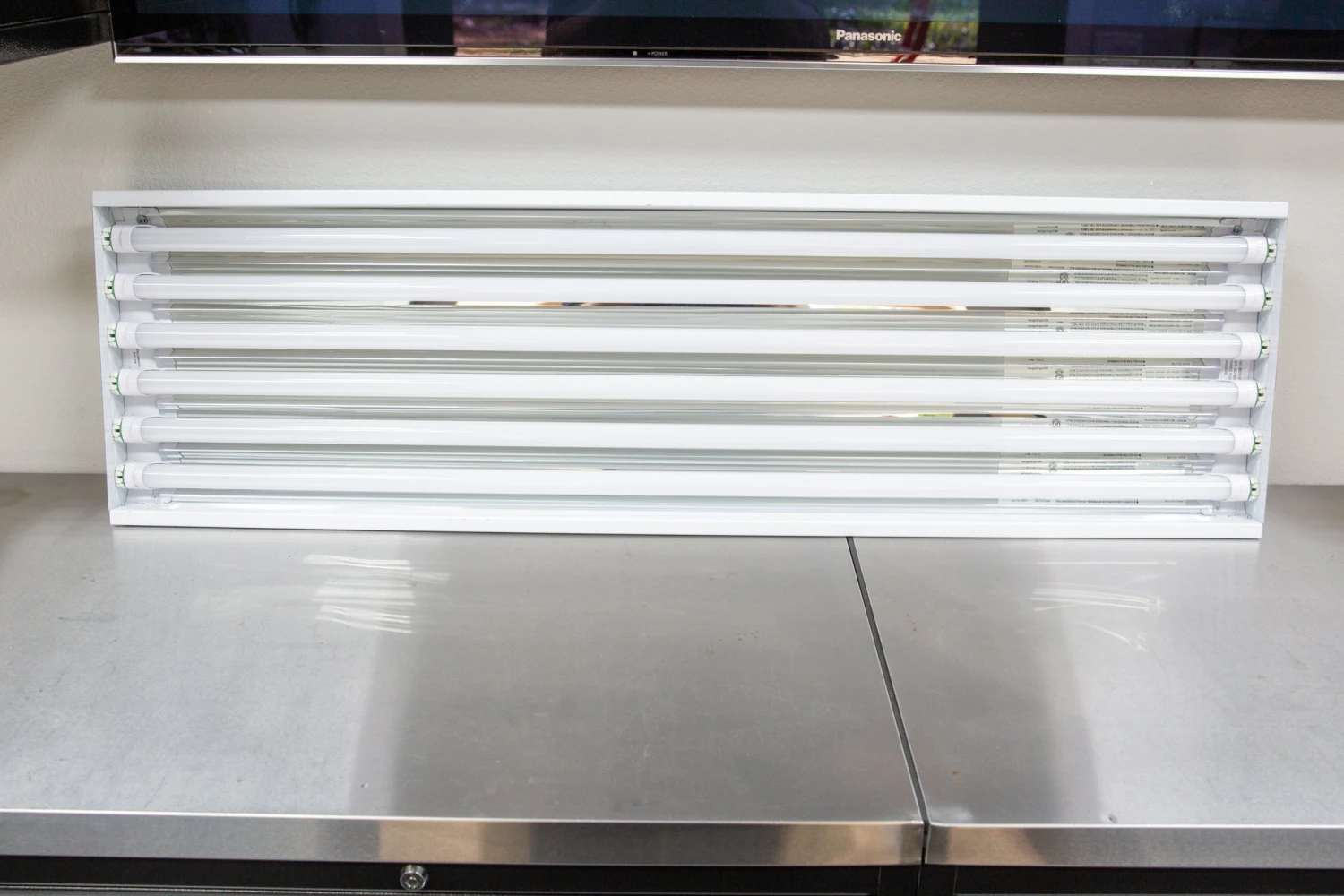

6 Bulb Fixture

– Rated to draw 1.2A per fixture
– 17,100 LED Lumen Output (32,490 Equivalent)

FAQ & Support

The warranty on these lights are for 5 years. If you have an issue, please

submit a request

with us.
