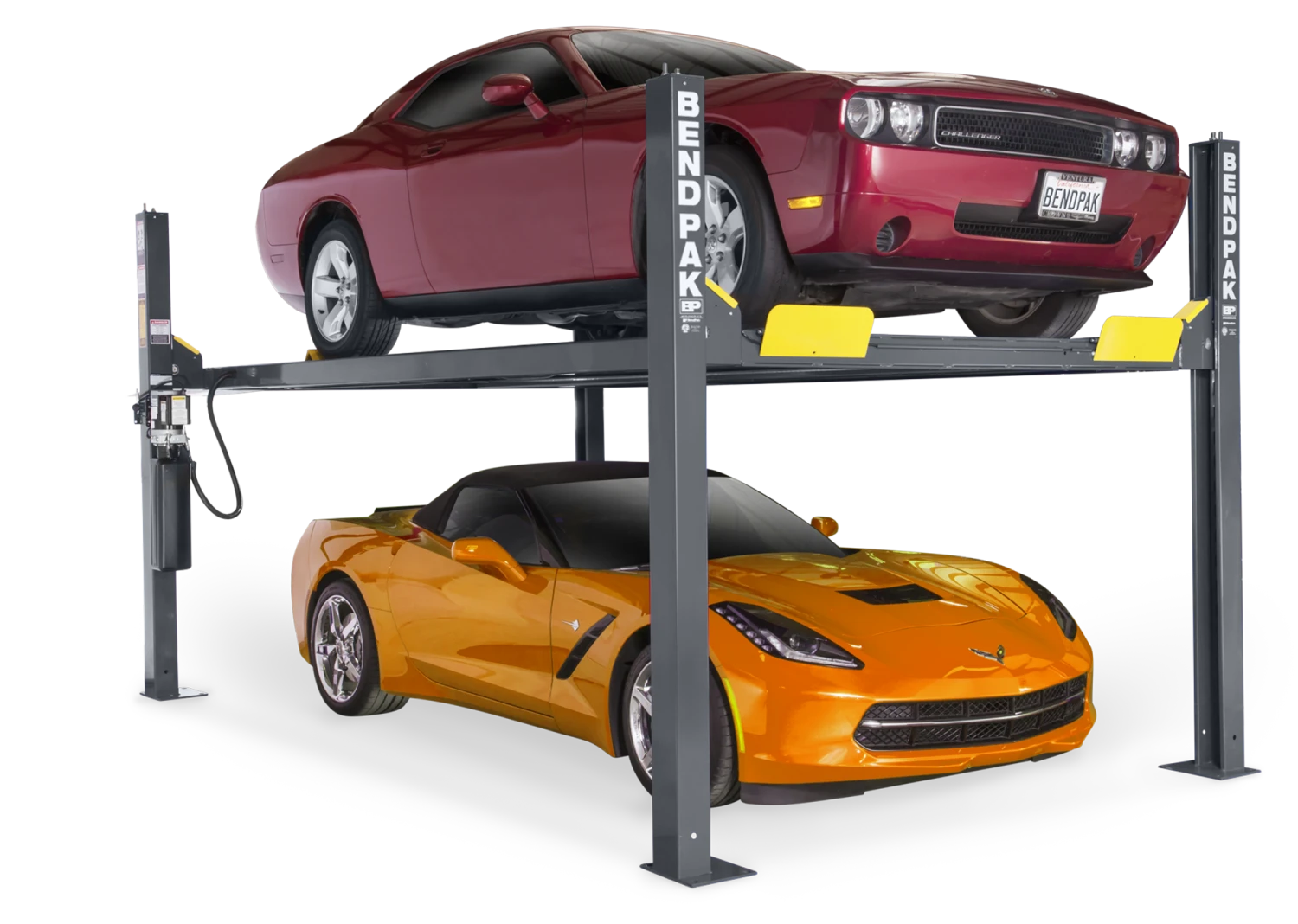

BendPak HD-9 Standard Four Post Lift

The guys at OG and BendPak have been bugging me about getting an affordable lift offering in the store, and now they’re available. The HD-9 is great for those looking to add some extra car storage in their garage. With a 4 post you don’t need to worry about concrete depth thanks to its 10″x12″ base plates and available caster kit to make it movable. This supports more weight than the HD-7 but features the same low deck runways so you can easily get your lowered car on the lift.

Features & Specifications

• Features
• 9,000-lb. maximum lifting capacity
• CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
• Freestanding design
• Perfect for parking, storage and service
• Runways accommodate narrow and standard vehicles
• Runways include rail-kit for optional accessories
• Electric / hydraulic power system

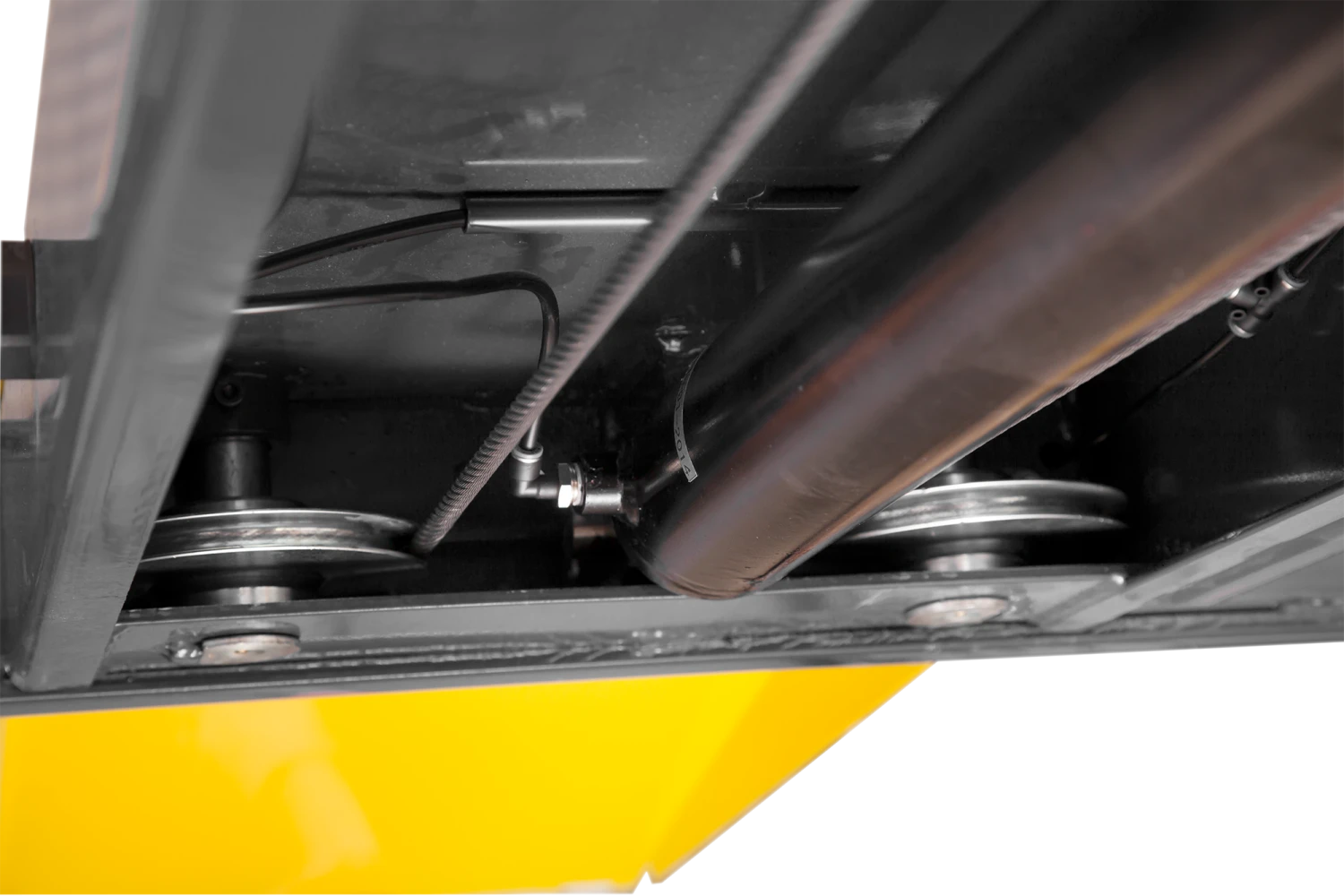

• Single hydraulic cylinder mounted underneath runway

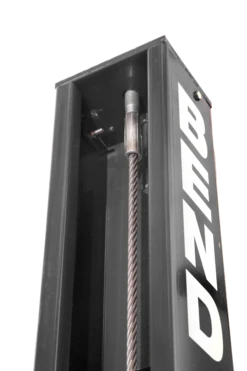

• Fully enclosed lifting cables, safety locks and sheaves
• Internal anti-sway slider blocks in each column

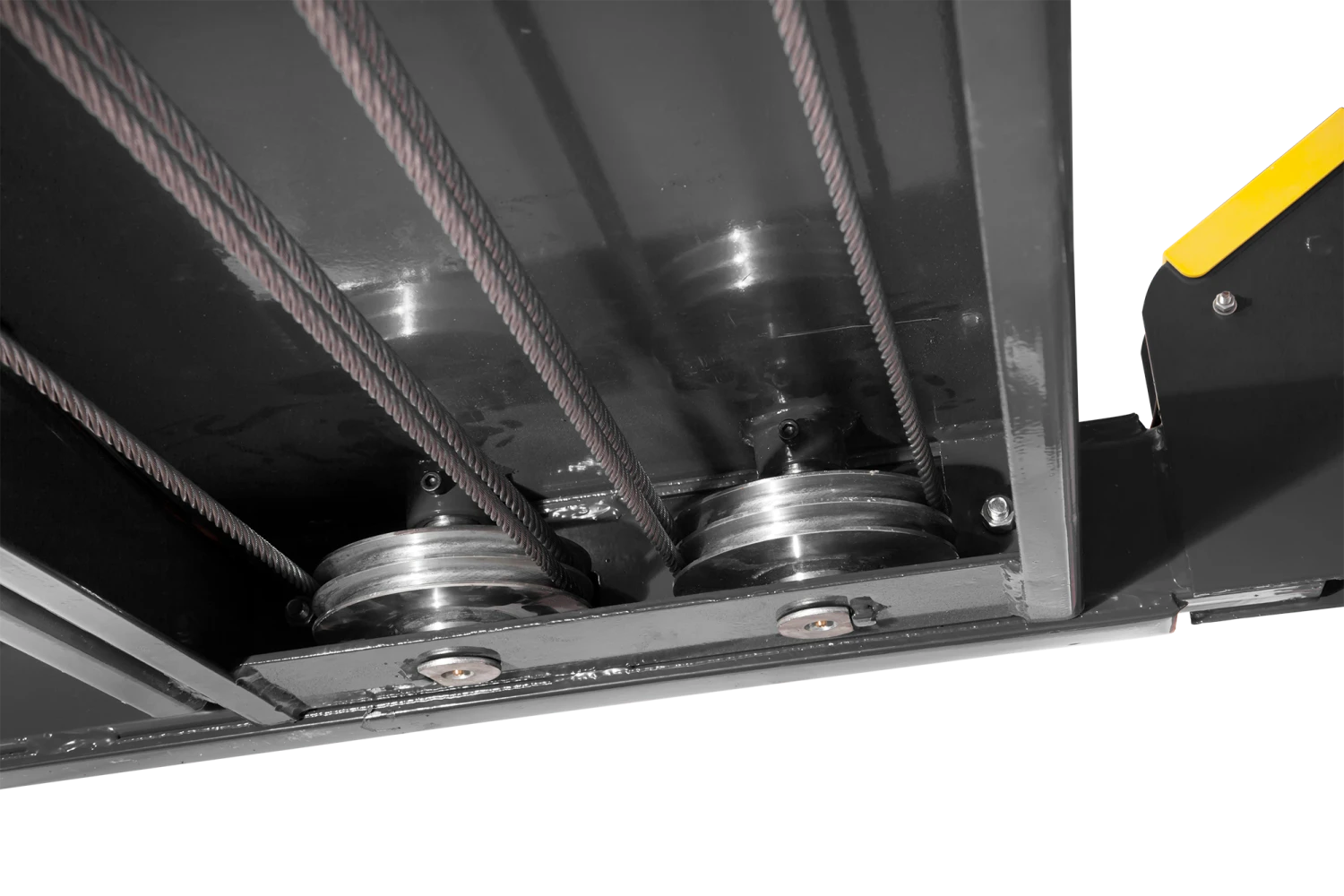

• Oversized self-lubricating cable rollers

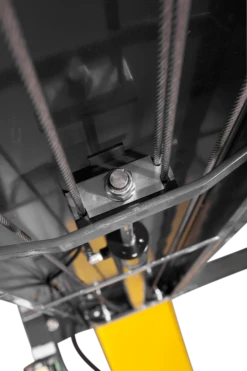

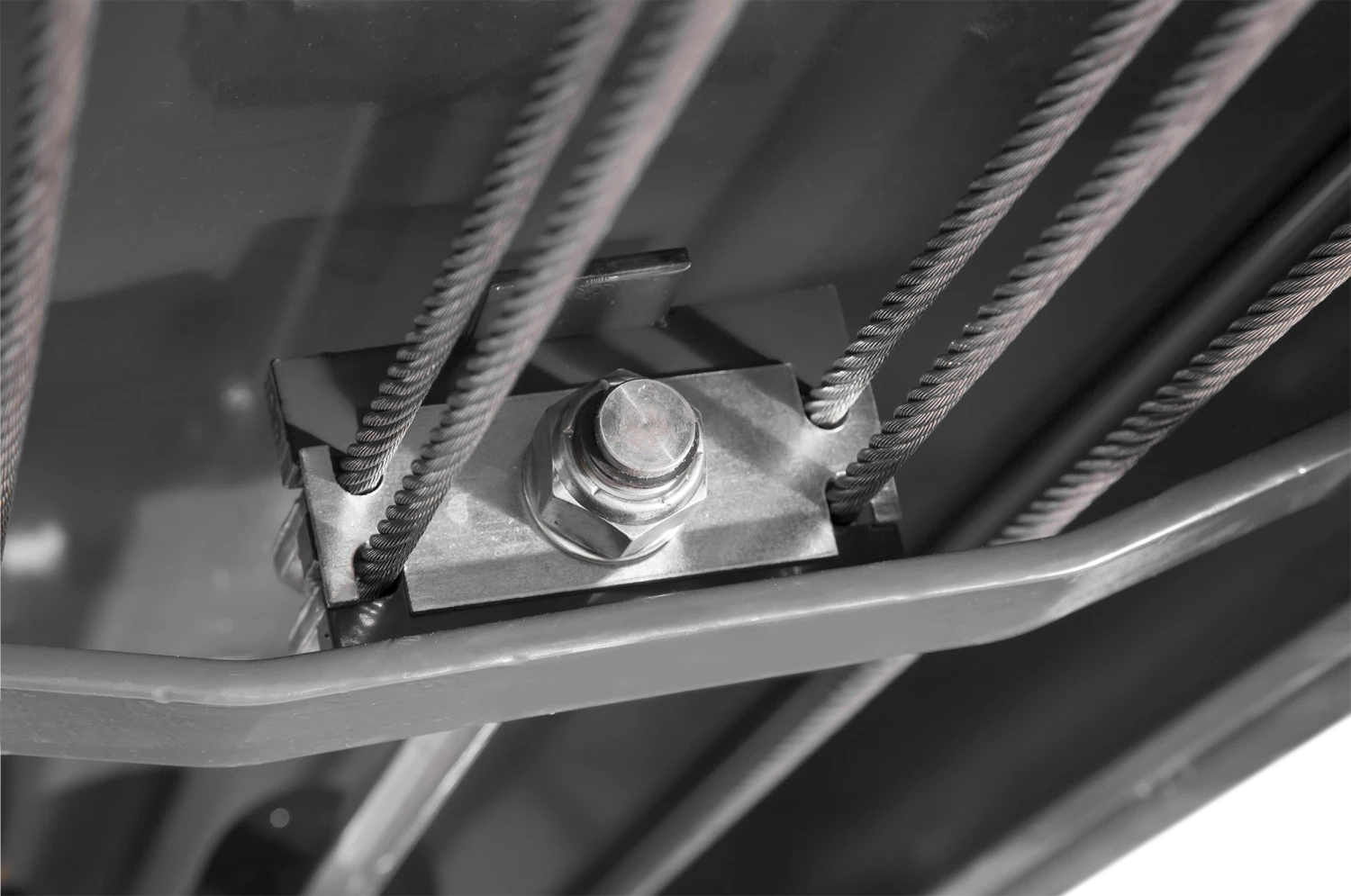

• Features heavy-duty 3/8″ aircraft cable
• Rugged 1.25″ roller axles
• Multi-position safety locks in each column

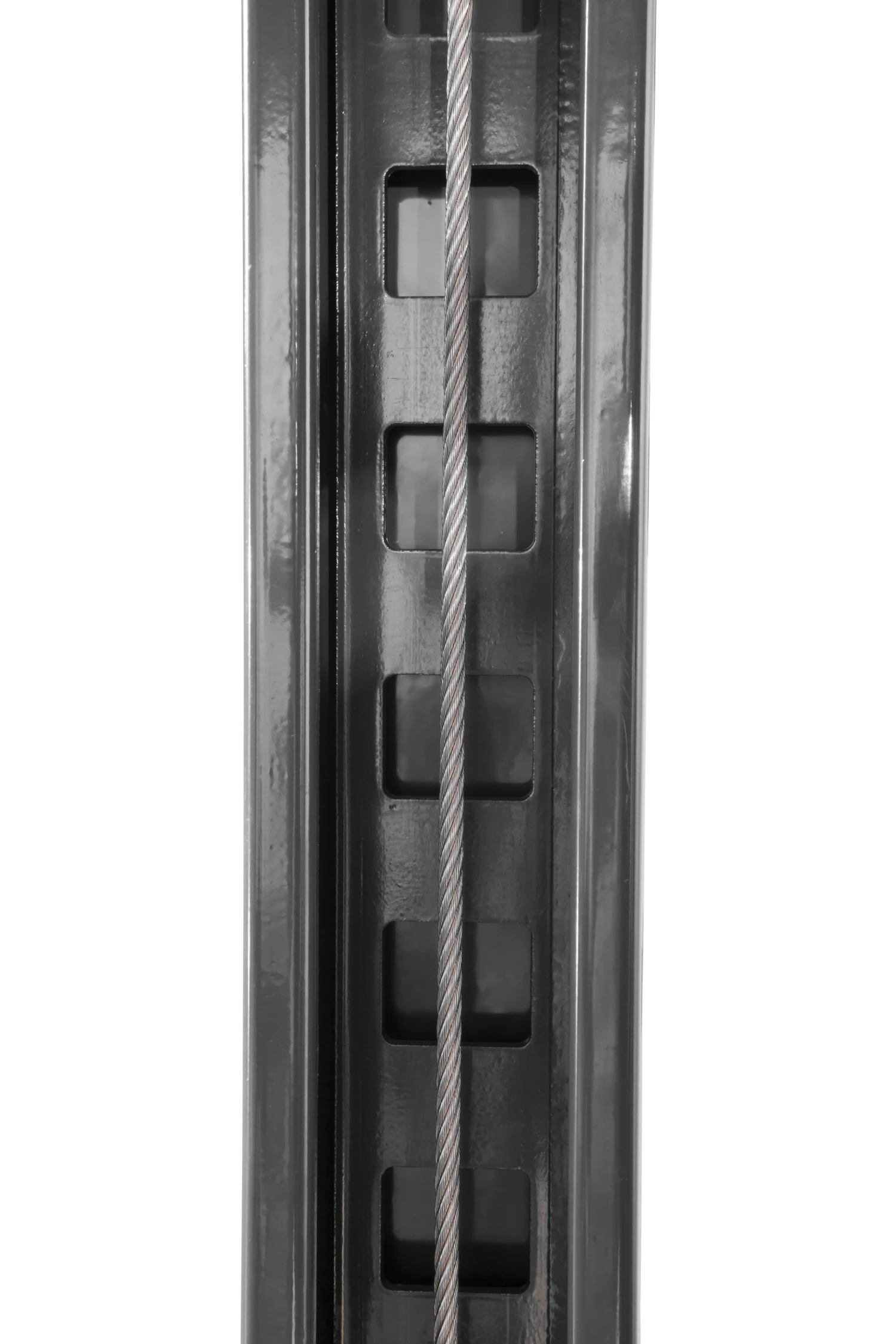

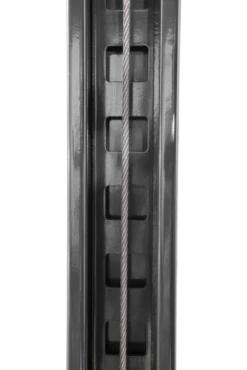

• Adjustable lock ladders
• Push-button pneumatic safety release

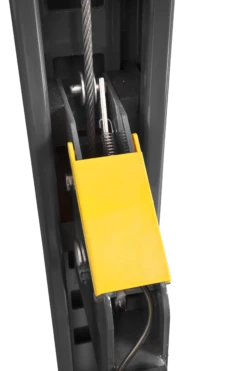

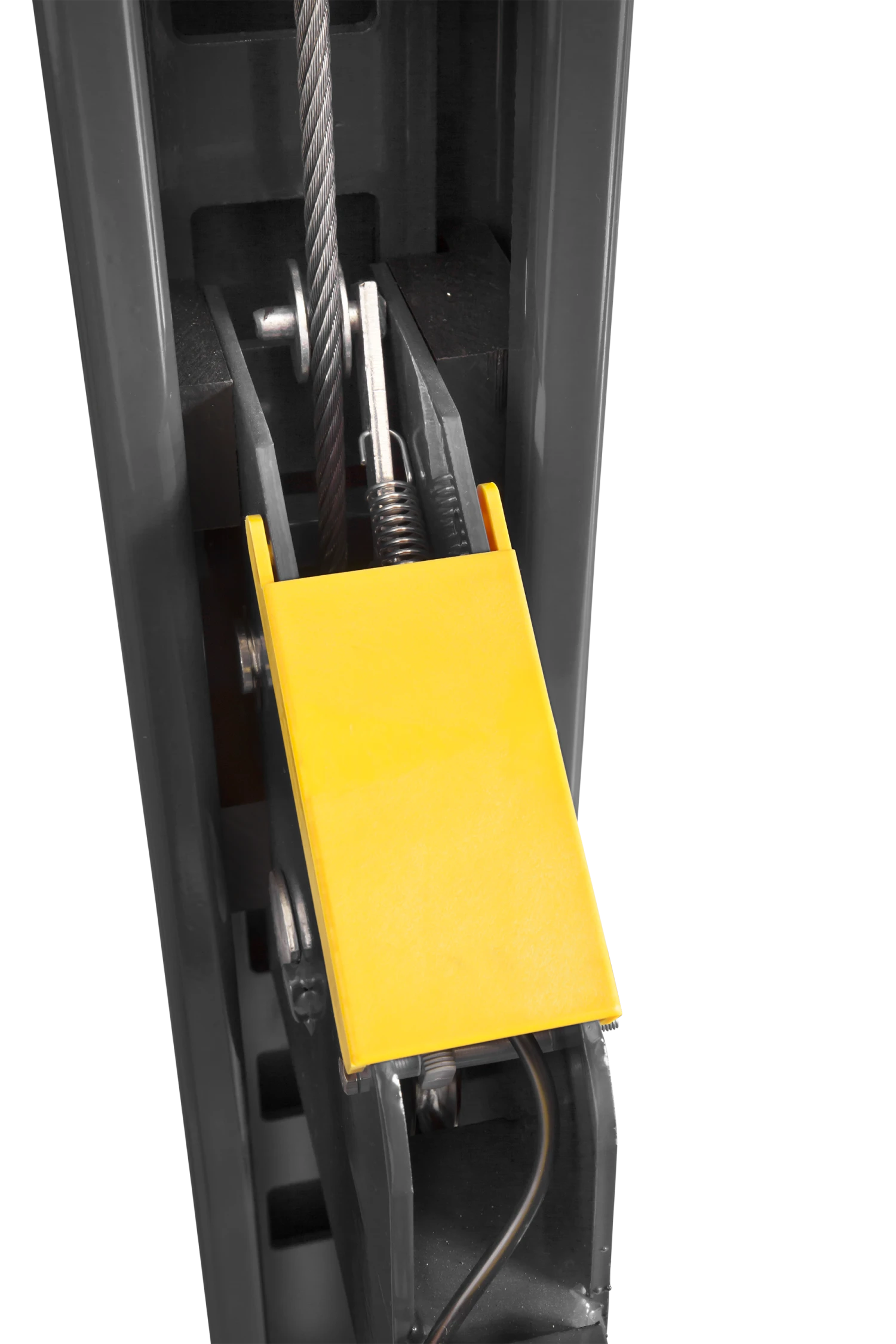

• Independent backup slack-cable safety latches
• Customizable power unit location
• Removable approach ramps for additional drive-under clearance
• Longer approach ramps for low-ground clearance vehicles
• Optional drive-thru ramps available
• Optional drip trays available
• Optional solid deck available to increase storage capacity
• Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
• ETL Approved
• Specs

• Lifting Capacity*9,000 lbs. (4,082 kg)
• *Max Capacity / Front Axle 4,500 lbs. (2,041 kg)
• *Max Capacity / Rear Axle 4,500 lbs. (2,041 kg)
• A – Min. Runway Height: 4.5″ (114 mm)
• Max. Rise: 70″ (1,778 mm)
• C – Max. Lifting Height: 74.5″ (1,892 mm)
• Time to Full Rise: 45 seconds
• D – Overall Width: 110.25″ (2,800 mm)
• E – Outside Length: 174″ (4,420 mm)
• F – Overall Length: 200″ (5,080 mm)
• G – Height of Columns: 88″ (2,235 mm)
• H – Width Between Columns: 100.25″ (2,546 mm)
• I – Drive-Thru Clearance: 86.5″ (2,197 mm)
• J – Runway Width: 19″ (483 mm)
• K – Length of Runways: 164″ (4,166 mm)
• L – Width Between Runways: 37.5″ (953 mm) or 44.375″ (1,127 mm)
• M – Runway Centerline: 56.5″ (1,435 mm) or 63.375″ (1,610 mm)
• N – Outside Edge of Runways: 75.5″ (1,918 mm) or 82.375″ (2,092 mm)
• Rated Capacity: 115″ (2,921 mm)
• 75% Capacity: 100″ (2,540 mm)
• 50% Capacity: 85″ (2,159 mm)
• 25% Capacity: 70″ (1,778 mm)
• Locking Positions: 12
• Lock Spacing: Every 4″ (102 mm)
• Motor: 220 VAC / 60 Hz / 1 Ph
• Noise: 45 dB
• Shipping Weight: 1,746-lbs. (792 kg)
• Dimensions: 165” x 22” x 34” (4,191 mm x 559 mm x 864 mm)

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
