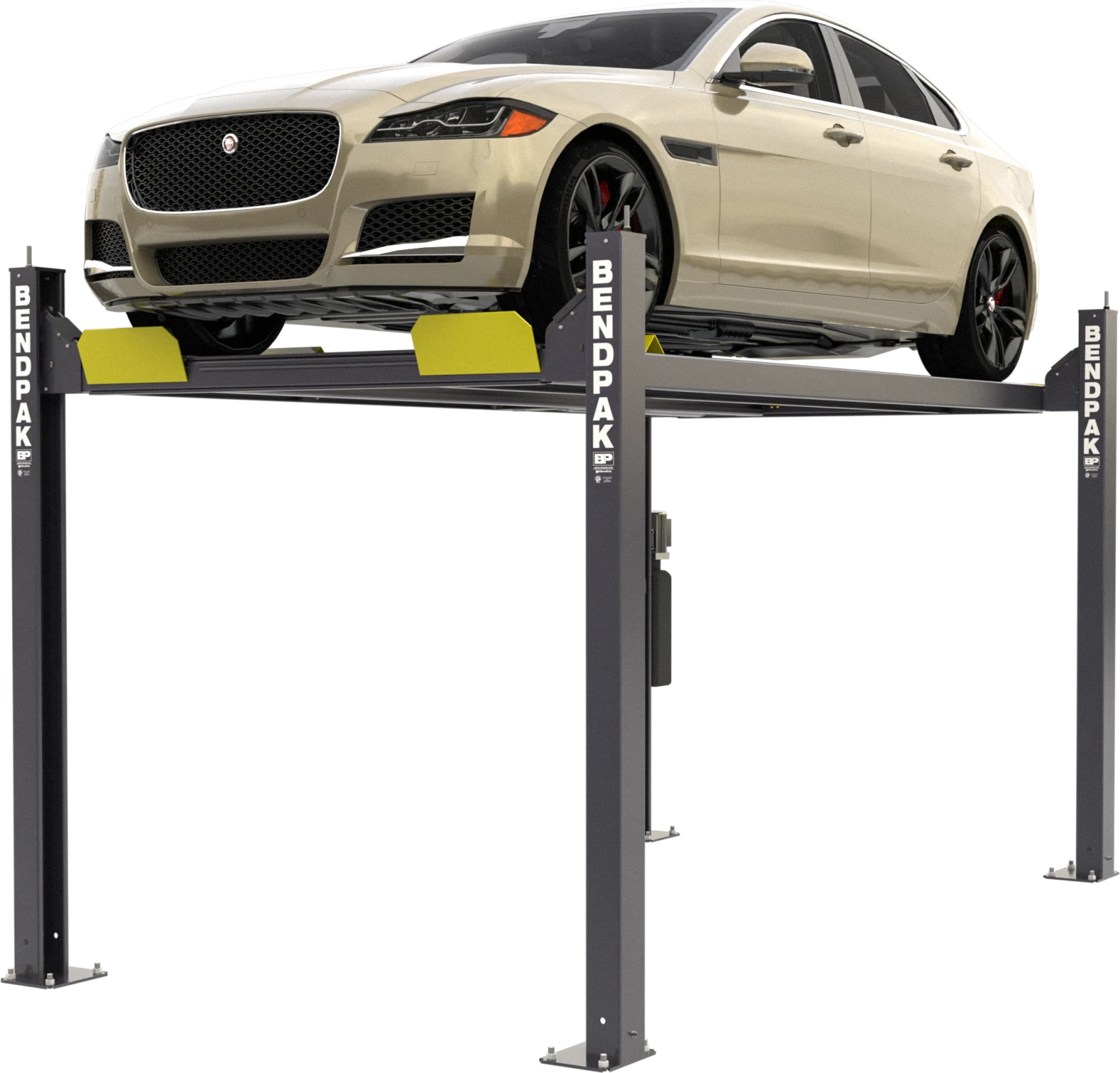

BendPak HD-7P Narrow High Rise Four Post Lift

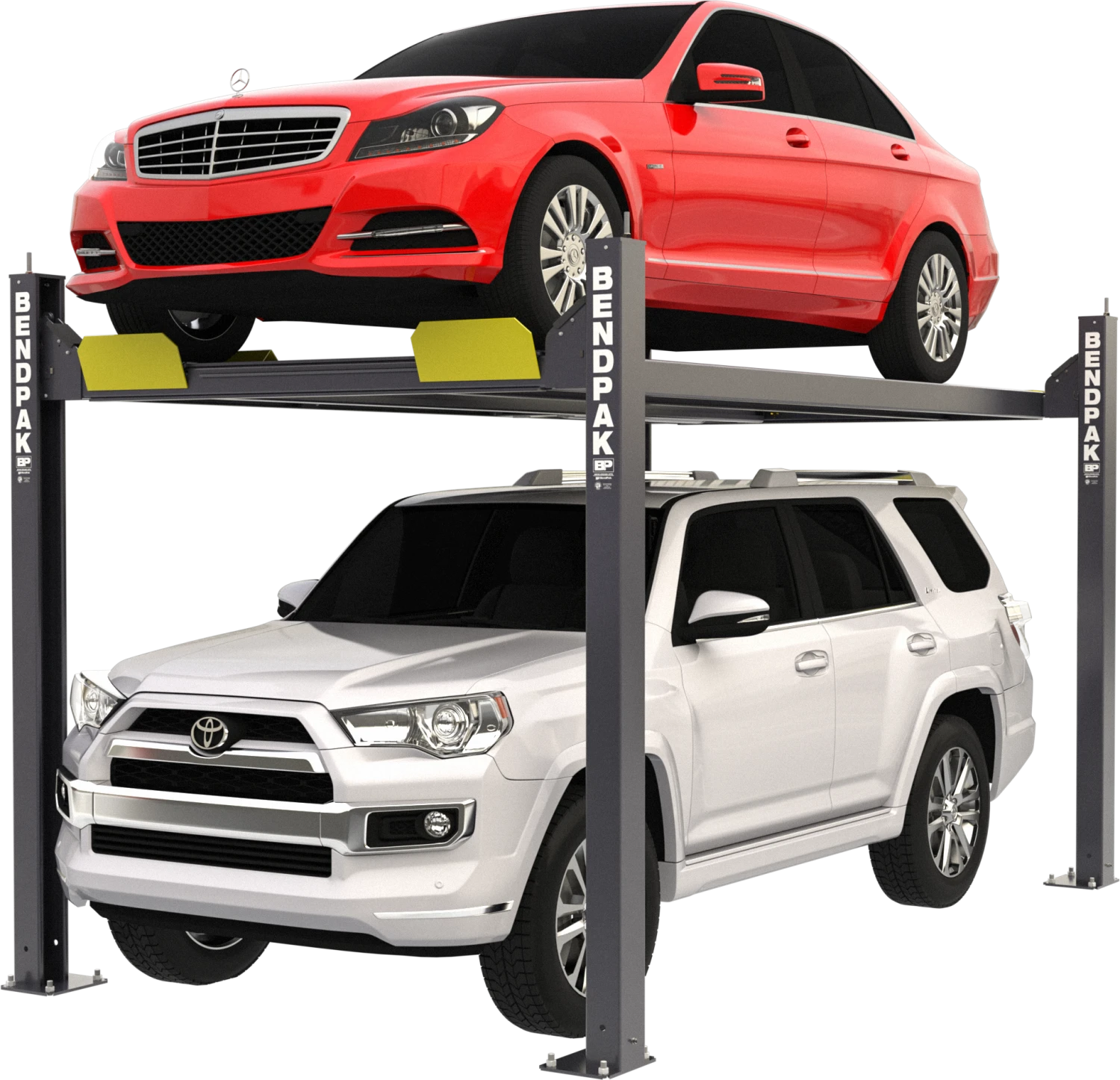

The guys at OG and BendPak have been bugging me about getting an affordable lift offering in the store, and now they’re available. The HD-7P is great for those looking to add some extra car storage in their garage. With a 4 post you don’t need to worry about concrete depth thanks to its 10″x12″ base plates and available caster kit to make it movable. It also has a low deck runway of 4.5″ and long approach ramps to help you not scrape the crap out of your lowered car when putting it on the lift.

Features & Specifications

• Features
• 7,000-lb. maximum lifting capacity
• High lift with short runways

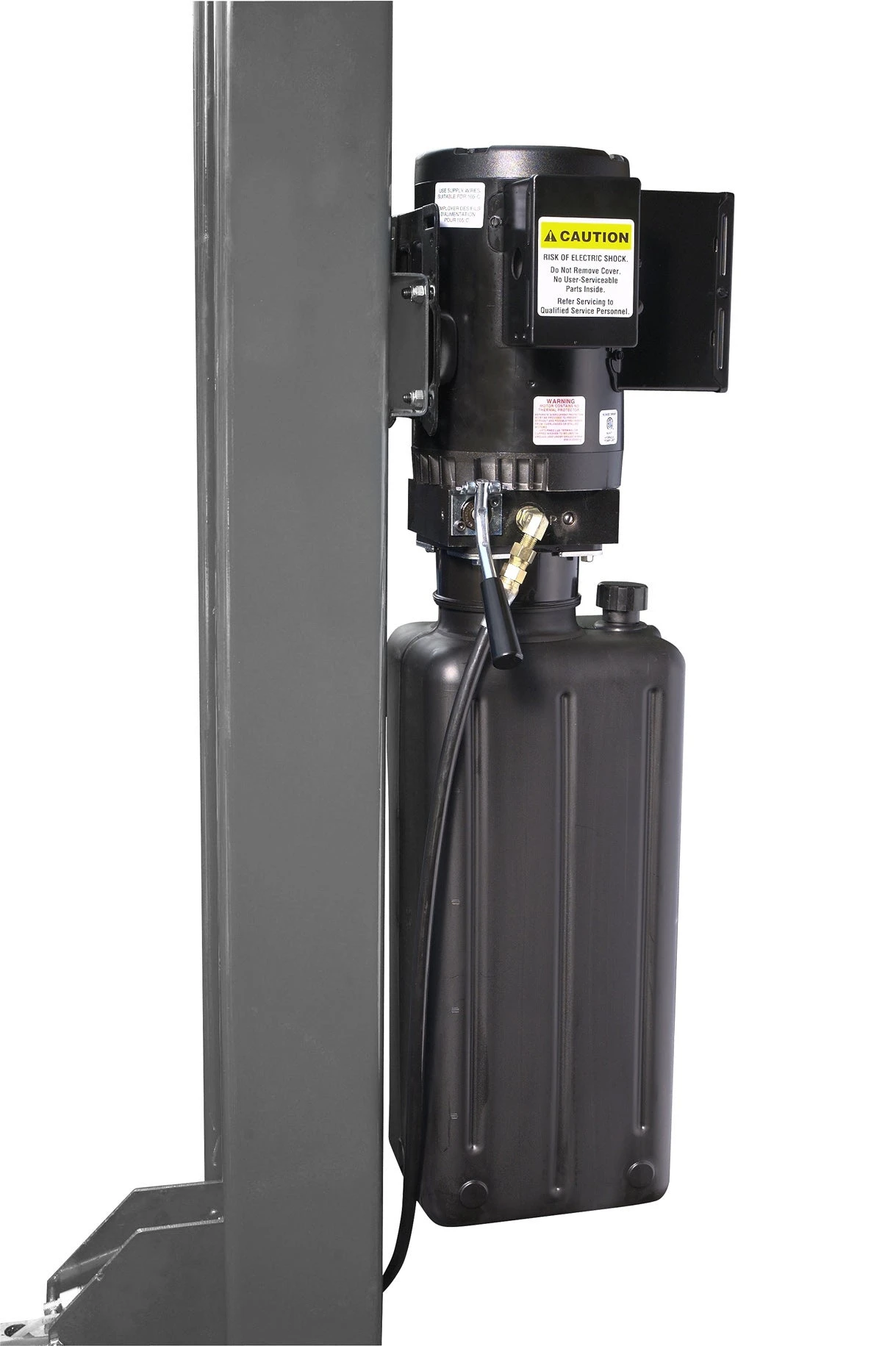

• Electric / hydraulic power system

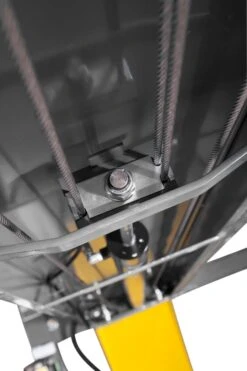

• Single hydraulic cylinder mounted underneath runway
• Internal anti-sway slider blocks in each column
• Oversized self-lubricating cable rollers
• High-speed lifting

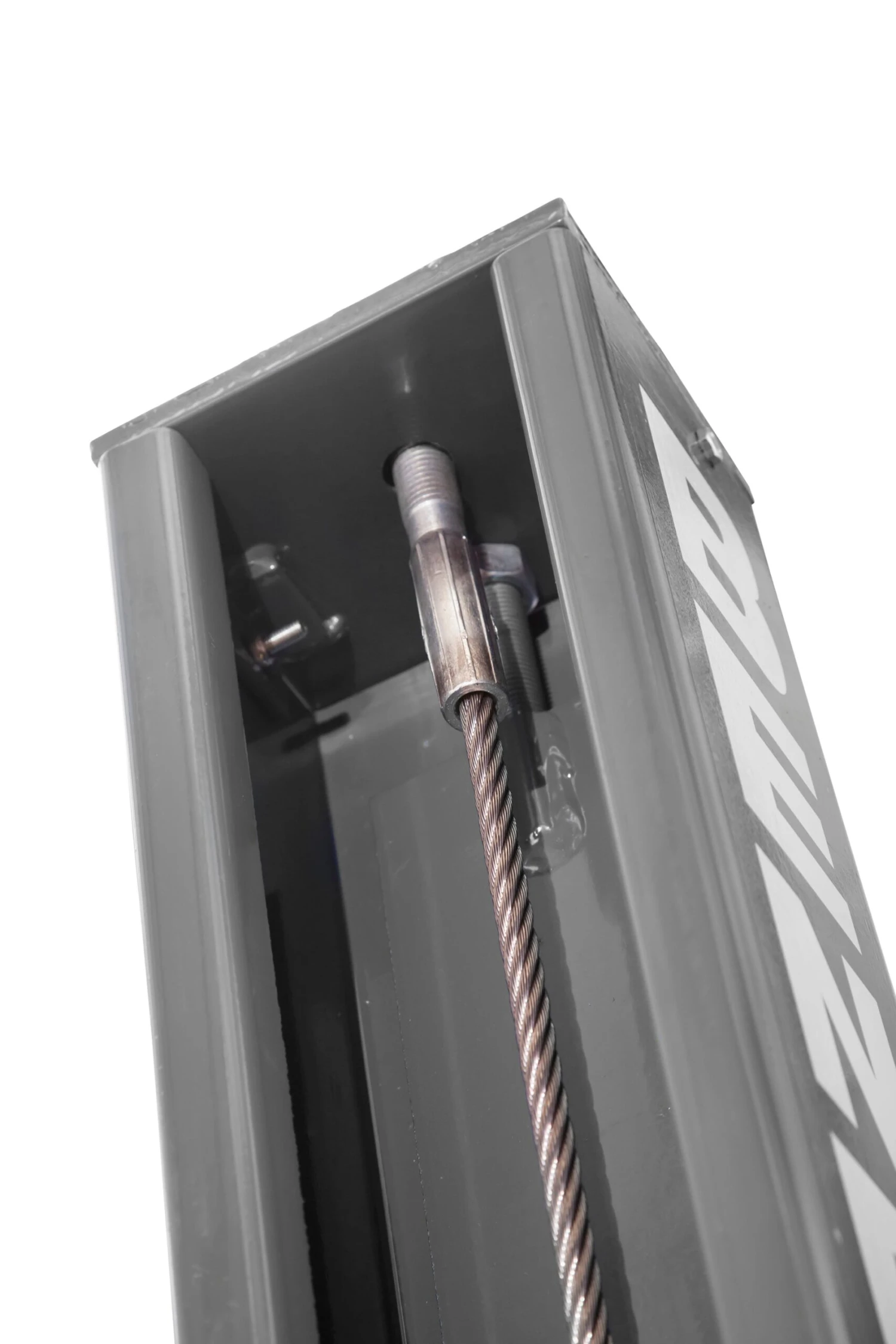

• Features heavy-duty 3/8″ aircraft cable
• Rugged 1.25″ roller axles
• Multi-position safety locks in each column
• Adjustable lock ladders
• Push-button pneumatic safety release
• Optional 4,500-lb. capacity rolling jack available (Model RJ-45)
• Specs

• Lifting Capacity* 7,000 lbs. (3,175 kg)
• *Max Capacity / Front Axle 3,500 lbs. (1,588 kg)
• Max Capacity / Rear Axle 3,500 lbs. (1,588 kg)
• A – Min. Runway Height: 4.5″ (114 mm)
• B – Max. Rise: 82″ (2,083 mm)
• C – Max. Lifting Height: 86.5″ (2,197 mm)
• Time to Full Rise: 35
• D – Overall Width: 100.25″ (2,546 mm)
• E – Outside Length: 174″ (4,420 mm)
• F – Overall Length: 200″ (5,080 mm)
• G – Height of Columns: 100″ (2,540 mm)
• H – Width Between Columns: 90.25″ (2,292 mm)
• I – Drive-Thru Clearance: 76.5″ (1,943 mm)
• J – Runway Width: 19″ (483 mm)
• K – Length of Runways: 164″ (4,166 mm)
• L – Width Between Runways: 37.5″ (953 mm)
• M – Runway Centerline: 56.5″ (1,435 mm)
• N – Outside Edge of Runways: 75.5″ (1,918 mm)
• Rated Capacity: 115″ (2,921 mm)
• 75% Capacity: 100″ (2,540 mm)
• 50% Capacity: 85″ (2,159 mm)
• 25% Capacity: 70″ (1,778 mm)
• Locking Positions: 15
• Lock Spacing: Every 4″ / 102 mm
• Motor: 220 VAC / 60 Hz. 1Ph.
• Noise: 45 db
• Shipping Weight: 1,803-lbs. (817.8 kg)
• Shipping Dimensions: 168” x 22” x 35” (4,267 mm x 559 mm x 889 mm)

FAQ & Support

Free Shipping in the 48 contiguous states to Commercial addresses that do not require a lift gate or fork lift. If you live in a residential area, select the residential shipping option which includes lift gate service.

Concrete Slab Requirements

User Manual

HD-7P Specs

BendPak Warranty

Balance Safety Guide
